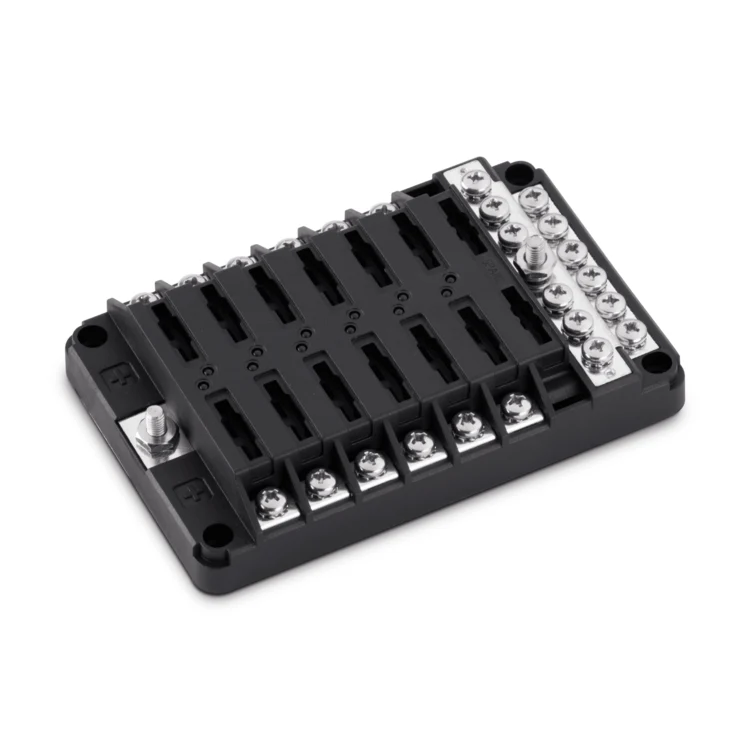

408 Series Fuse Block | FS40840
12 gang with bus bar and cover. ABYC/USCG compliant. Transparent cover with recessed area for labels (60pc. decal set included). Accepts ATP/ATC/ATO blade style fuses up to 30A. LED indication of blown fuses. Storage for 2 spare fuses.
- Overall size:Ā 3 3/8"W x 5 1/4"L x 1 5/8"H
- Max Voltage Rating:Ā 32VDC
- Rating per Circuit:Ā 30A
- Max Cumulative Rating per block:Ā 100A
- Terminal Stud Size:Ā M5
- Screw Size:Ā M4
- Accepts ATP/ATC/ATO blade style fuses up to 30A
Product Information
Product Information
Shipping & Returns
Shipping & Returns
408 Series Fuse Block | FS40840
408 Series Fuse Block | FS40840
12 gang with bus bar and cover. ABYC/USCG compliant. Transparent cover with recessed area for labels (60pc. decal set included). Accepts ATP/ATC/ATO blade style fuses up to 30A. LED indication of blown fuses. Storage for 2 spare fuses.
- Overall size:Ā 3 3/8"W x 5 1/4"L x 1 5/8"H
- Max Voltage Rating:Ā 32VDC
- Rating per Circuit:Ā 30A
- Max Cumulative Rating per block:Ā 100A
- Terminal Stud Size:Ā M5
- Screw Size:Ā M4
- Accepts ATP/ATC/ATO blade style fuses up to 30A
Original: $66.99
-65%$66.99
$23.45Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
12 gang with bus bar and cover. ABYC/USCG compliant. Transparent cover with recessed area for labels (60pc. decal set included). Accepts ATP/ATC/ATO blade style fuses up to 30A. LED indication of blown fuses. Storage for 2 spare fuses.
- Overall size:Ā 3 3/8"W x 5 1/4"L x 1 5/8"H
- Max Voltage Rating:Ā 32VDC
- Rating per Circuit:Ā 30A
- Max Cumulative Rating per block:Ā 100A
- Terminal Stud Size:Ā M5
- Screw Size:Ā M4
- Accepts ATP/ATC/ATO blade style fuses up to 30A
